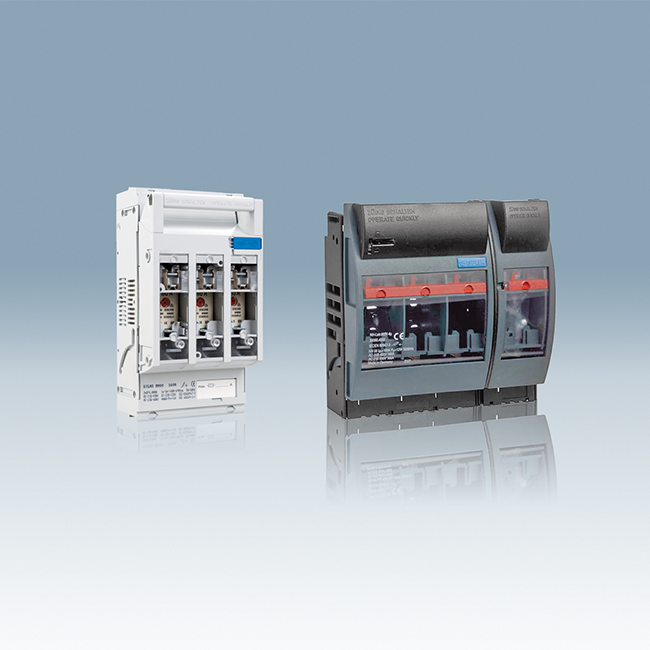

NH Fuse-Switches, horizontal design

Perfectly-tuned systems with one to four switching poles and in sizes 000 to 3. In DC applications, the compact TPS fuse-switches and load-break switches save space and costs. A comprehensive range of accessories allows various application-specific solutions to be realized.

NH Fuse-Switches, horizontal design, 690 V AC, 1-pole to 4-pole switching, for baseplate and supporting-rail mounting

NH fuse-switches, horizontal design, for NH fuse-links acc. to IEC/VDE standards

  • Compact design
  • Several connection options
  • Modular design

NH Fuse-Switches, horizontal design, 1 to 4-pole, 690 V AC and 1500 V AC, for baseplate and busbar mounting

NH fuse-switches, horizontal design, for NH fuse-links acc. to IEC/VDE standards

  • Compact design
  • Several connection options
  • Modular design

NH Fuse-Switches, horizontal design, 690 V AC, 3-pole switching, for busbar mounting – 40/12 mm system

Horizontal-design NH fuse-­switches for busbar mounting of the SILAS series feature a consistent installation depth and are easily and flexibly installed in accordance with customer requirements.

NH Fuse-Switches, vertical design, 690 V AC, 3-pole switching, for busbar mounting – 60 mm system

The horizontal-design NH fuse-switches of the SILAS series yield many benefits for the installation in 60 mm busbar systems.

  • Reversible hook contacting for top or bottom terminal position
  • Narrowest device worldwide within this system (size 000)
  • Consistent field cover height for all sizes

NH Fuse-Switches SILAS – for 60 mm busbar feed

SILAS horizontal-design fuse-­switches provide additional terminals. This allows the feeding of one 60 mm busbar system plus one additional fuse outlet.

  • Cost-efficient
  • Space-saving
  • Direct mounting without drilling
  • Size 1 and 2 for 60 mm busbar systems

NH Fuse-Switches, horizontal design, 690 V AC, 3-pole switching, for busbar mounting – 100 mm system

Application:

  • Sliding fuse-test window
  • Top or bottom terminals selectable
  • Easy and quick installation

Fuse disconnector, 1000 V DC, 1 and 2-pole, for baseplate mounting

Application

Protection of DC photovoltaic (PV) systems against overcurrent and short-circuits

Disconnector, 1000 V DC, for baseplate and supporting-rail mounting

Application

Safe disconnection of the power supply
